HyFlex rotary files are NiTi instruments used for canal enlargement to prepare the root canal for irrigation and obturation in continuous rotation or depending on the clinical situation also in reciprocal motion.
The new HyFlex EDM files constitute the 5th generation root canal files. HyFlex EDM NiTi files have completely new properties due to their innovative manufacturing process using electric discharge machining.
The files are available in different sizes and have an ISO color coded handle, indicating the tip size of file and color coded rubber stops indicating the degree of the taper (.02 -.08).
The new generation of NiTi heat treated files have been manufactured utilizing a unique process that controls the material’s memory, making the files extremely fracture resistant and flexible but without the shape memory of other NiTi files. The files are suitable for multiple use and can be restored during autoclaving.
Workpieces are machined in the EDM manufacturing process by generating a potential between the workpiece and the tool. The sparks generated in this process cause the surface of the material to melt and evaporate. This creates the unique surface of the new Niti files and makes the HyFlex EDM files stronger and more fracture resistant. This entirely unique combination of flexibility and fracture resistance makes it possible to reduce the number of files required for cleaning and shaping during root canal treatments without having to compromise preservation of the root canal anatomy.
Just like HyFlex CM files, HyFlex EDM files have the already familiar controlled memory effect (CM). This results in very similar properties in terms of material flexibility and regeneration. They are manufactured utilising a unique process in which the crystallographic phase transitions from austenite to martensite at room temperature in contrast to conventional NiTi files, making the files extremely flexible, fracture resistant and able to regenerate multiple times.
Up to 700% higher fracture resistance
Specially hardened surface
Less filing required for treatment success
HyFlex NiTi have a built-in shape memory.
They prevent stress during preparation by changing their spiral shape.
They regain their shape after heat treatment.
High fracture resistance and flexibility
Centered canal preparation
Regeneration and visual monitoring for safe multiple use
Fast preparation with high cutting efficiency and reduced number of files
Suitable for almost all clinical cases
All HyFlex EDM NITI Files can be used at 400 rpm and at a torque of up to 2.5 Ncm (25 mNm) excepted the Glidepath files which can be used with 300 rpm and at a torque of up to 1.8 Ncm (18 mNm).
Length :
One File (25/~) – 25mm
Orifice Opener (25/.12) – 15mm
Glide Path File (10/.05) – 25mm
Shaping Set (25/.12, 25/~, 10/.05) – 25mm
Shaping Set Medium ( 10/.05, 20/.05 , 25/.0~ ) – 21mm

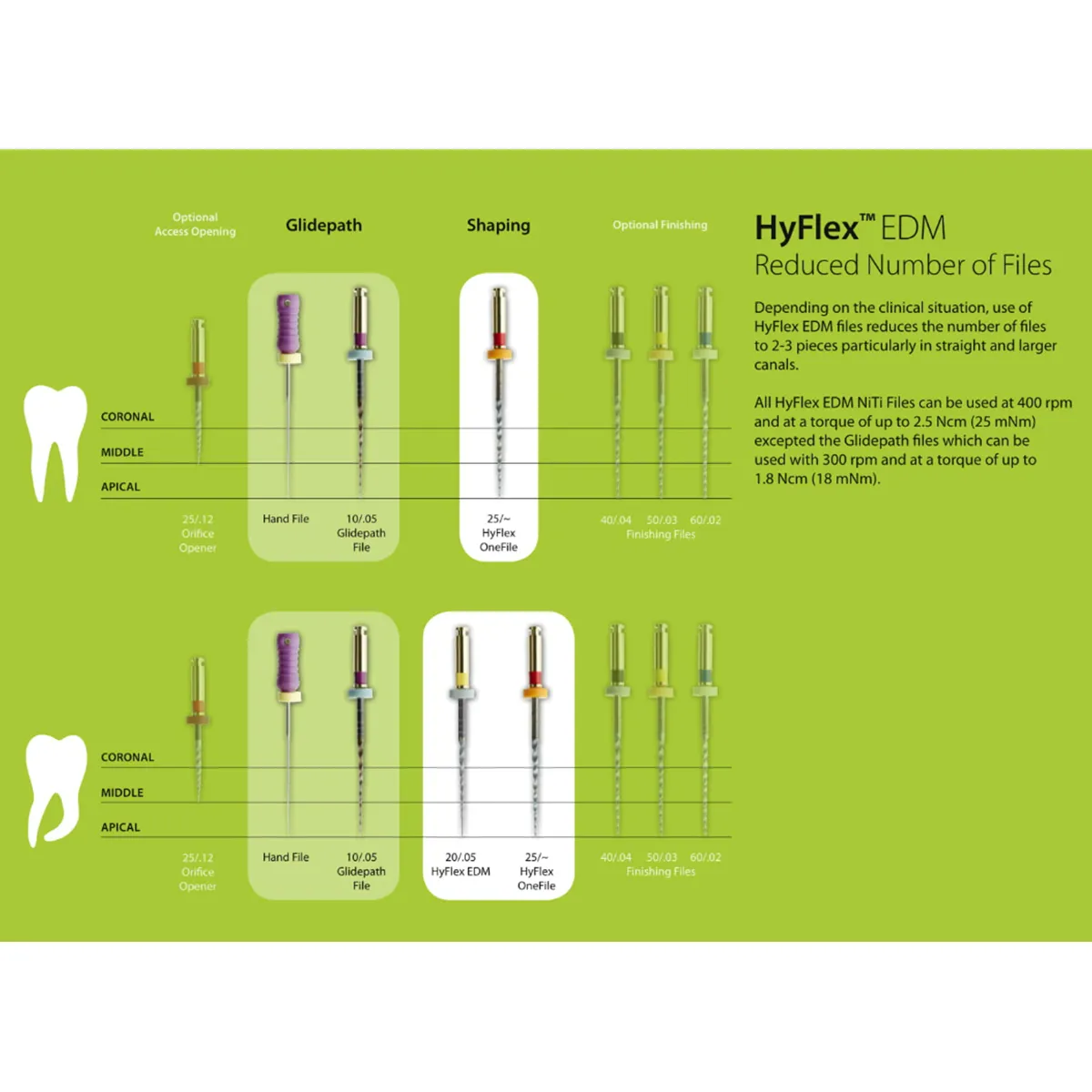

SEQUENCE STEP BY STEP :
ORIFICE OPENER – 25 / .12
Glidepath File – 10 / .05
Preparation File – 25/~
FINISHING FILES :
40 / .04
50 / .03
60 / .02
yFlex EDM files are manufactured using electric discharge machining, where sparks generated between the workpiece and the tool create a unique surface that makes the files stronger and more fracture resistant.
Yes, HyFlex EDM files are suitable for multiple uses, and they can be autoclaved for sterilization and restoration.
The files come in different sizes and have ISO color-coded handles indicating the tip size. Additionally, color-coded rubber stops indicate the degree of taper (.02 to .08) for precise selection.
HyFlex EDM files are the 5th generation of root canal files and are manufactured using electric discharge machining, which gives them unique properties, including greater fracture resistance and flexibility without the shape memory of traditional NiTi files.
HyFlex EDM NiTi files are used in endodontics to enlarge root canals, preparing them for irrigation and obturation. They aid in the cleaning and shaping of root canals during procedures.
The packaging of Coltene Hyflex Edm includes three rotary files. These files are essential tools for various endodontic procedures, aiding dental professionals in performing precise and efficient root canal treatments.
