Ergonomic and lightweight design of Star Pen for ease of use and holding
Compatible with the needle of your choice – Works with all standard anesthetic cartridges and dental needles
No proprietary consumables – no new running costs for use. The cartridge holders are autoclavable and will last up to 1,000 cycles per testing.
Cordless and battery-operated without a foot pedal or console to control
2 modes (auto aspiration and manual aspiration)
No special training is needed. Intuitive one-button aspiration is easy to set your desired injection preferences.
2 speed modes: High Speed, Low Speed
2 aspiration modes: Auto aspiration, Manual aspiration
High durability and clarity

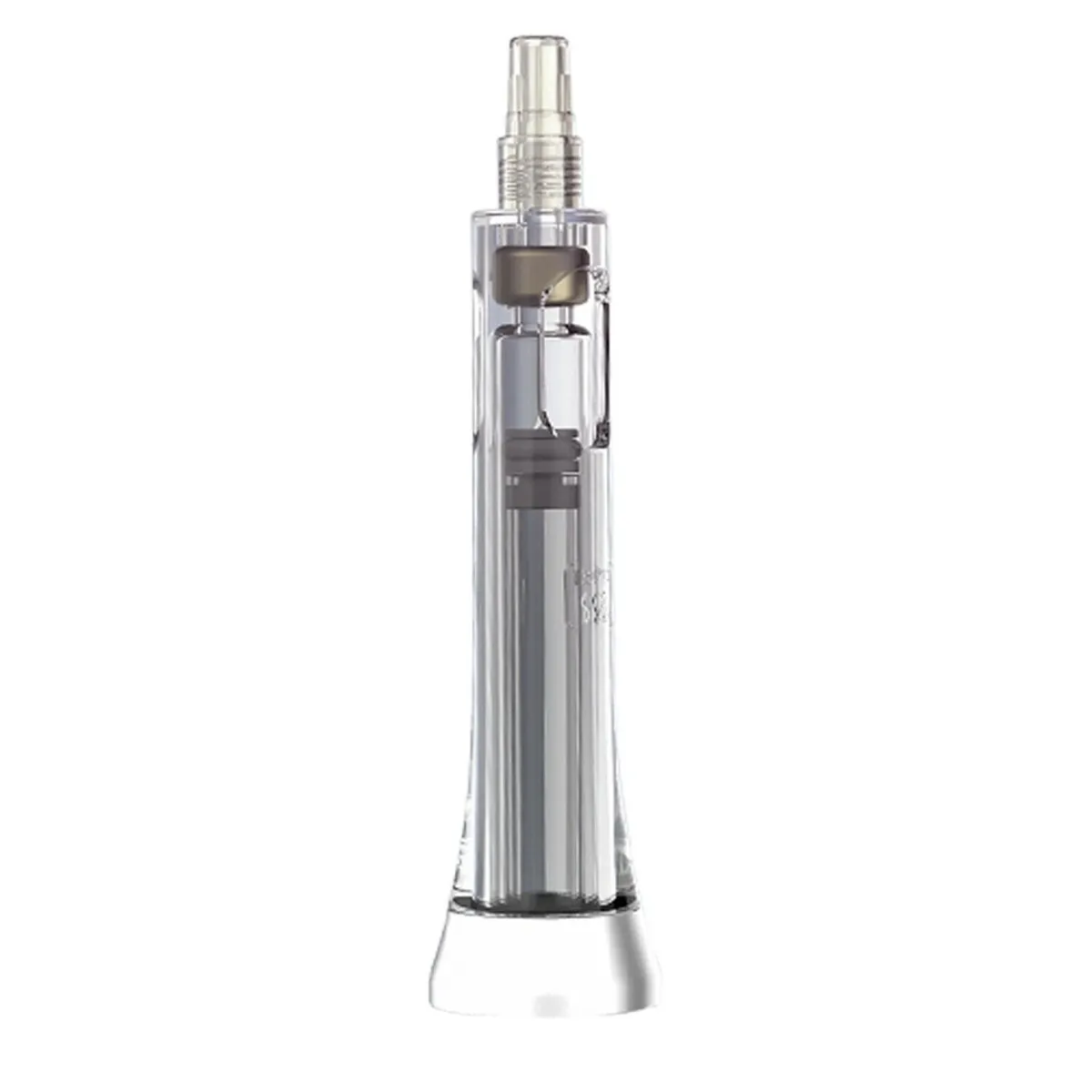

The cartridge holder can be autoclaved thousands of times
More cost-efficient
Lithium battery in charging base: 3.7V /2000mAh
Lithium battery in handpiece: 3.7V /200mAh
Input Powe: ~100V-240V 50Hz/60Hz 0.4A Max
Output Power: DC5V/1A
Environment temperature: +5℃ ~ +40℃
Relative humidity: 30% ~ 75%
Atmospheric pressure: 70kPa ~ 106kPa
1x Charging base
1x Handpiece
1x Cartridge Holder
1x Power adapter
1x Instructional Manual
Preparation:
Ensure the Star Pen is fully charged or connected to a power source.
Check that the handpiece and cartridge holder are securely attached.
Loading the Cartridge:
Select the appropriate local anesthetic cartridge for the procedure.
Remove the protective cap from the cartridge and insert it into the cartridge holder of the Star Pen.
Ensure the cartridge is properly aligned and securely attached.
Adjusting the Injection Speed:
The Star Pen typically offers three adjustable injection speed modes. Choose the appropriate speed for the procedure.
Use the control buttons or switches on the pen to adjust the injection speed according to your preference.
Locating the Injection Site:
Identify the target area where the local anesthetic needs to be administered.
Ensure the area is clean and prepped according to standard protocols.
Administering the Local Anesthetic:
Hold the Star Pen in a comfortable grip, ensuring a firm and stable hand position.
Position the needle tip at the desired injection site and apply gentle pressure to initiate the injection.
Maintain a steady hand and gradually apply the local anesthetic using the desired injection technique (e.g., slow push, incremental injections, etc.).
Monitoring and Adjusting:
Observe the patient’s response and adjust the injection speed or technique if necessary.
Continuously monitor the patient’s comfort level and adjust the injection accordingly.
Post-Injection Care:
Once the local anesthetic has been administered, carefully remove the needle from the injection site.
Follow proper disposal procedures for used cartridges and needles.
Provide post-injection instructions to the patient as needed.
Manufacturer/Importer warranty for Woodpecker Star Pen is 1 year .
Service and Warranty are handled by the manufacturer/importer directly for this product
Dentohook will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
Dentohook and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentohook may assist the customer in registering a request to get the Product replaced or serviced.
The Buyer acknowledges that the Products once soldwill not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.
Answer: The Woodpecker Star Pen is compatible with any brand of 1.8ml LA cartridges and needles for dental cartridge syringes. This flexibility allows practitioners to use their preferred cartridges and needles, ensuring convenience and ease of use during dental procedures.
Answer: The Woodpecker Star Pen provides relatively less painful injections compared to manual techniques, due to its controlled anesthesia administration feature. This helps in minimizing discomfort during the injection process, enhancing patient comfort.
Answer: The Woodpecker Star Pen is compatible with standard gauge needles commonly used in dental clinics for local anesthesia. Ensure the correct gauge selection based on the injection site and patient comfort.
Answer: The Woodpecker Star Pen is designed for subcutaneous or intramuscular local anesthetic injections in dental procedures. It should not be used for intravenous or other routes of administration.
Answer: Yes, the Woodpecker Star Pen can be aspirated. It features two modes: auto aspiration and manual aspiration, providing versatility and convenience during dental procedures.
Answer: The Woodpecker Star Pen is an alternative to traditional syringes for precise local anesthetic delivery. It does not come with syringes/needles or anaesthetic cartridges, so you need to purchase them separately based on your preferences and requirements.
Answer: While the Star Pen is designed to be user-friendly, it is recommended to receive proper training on its usage before administering local anesthetics. This will ensure you have a comprehensive understanding of the device and can use it effectively and safely.
Answer: The Star Pen is typically compatible with standard local anesthetic cartridges used in dental or medical procedures.
Answer: The suitability of using the Star Pen on children depends on various factors, including the age and procedure being performed. It is best to consult with a healthcare professional or dentist who can determine the appropriate usage for pediatric patients.
Answer: The Star Pen uses a motorized system to drive the injection of local anesthetics. It replaces manual syringe injections, offering more consistent and controlled delivery of the anesthetic solution.
